Product Details:

Excellent for either wood or aluminum patio doors.
45-degree keyway.

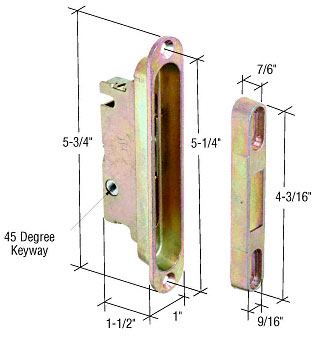

Because of the pocket trim plate, this Mortise Lock is recessed, so that the door closes flush against the jamb. It is excellent for either wood or aluminum doors. It comes with the Keeper. The integration of the keeper and lock allows positive anti-lift protection. The plated steel hook is mounted in an anti-friction pivot and encased in a steel housing. The overall depth of the unit is 1-1/2 inches (38.1 millimeters), the housing is 1 inch (25.4 millimeters) wide.

Center-to-Center Holes: 5-1/4 in (133.3 mm).

Used with Mortise Style Handle Sets.

Minimum Order: One Package (one lock and keeper assembly with fasteners per package).
