Product Details:

Non-Handed
Stainless Steel

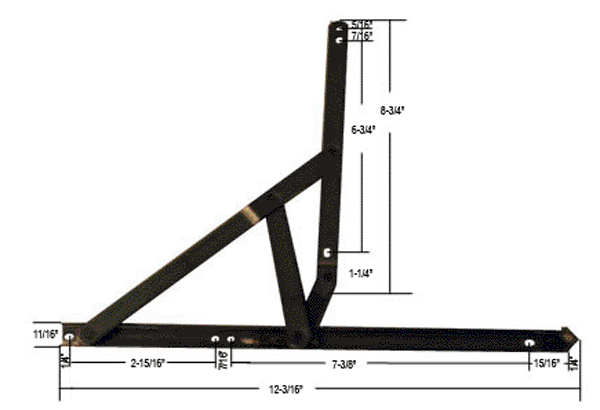

This 90 Degree 4 Bar Hinge is designed for casement window applications. Similar to the standard 4-bar hinge, with the exception of allowing a full 90 degree opening of the vent. All 90 degree hinges come with a brass slide shoe. This standard duty hinge is recommended for a maximum vent weight of 65 pounds (29.5 kg). Since these hinges pull the sash away from the jamb as it opens, these hinges only work with Dyad type casement operators.

Length: 12 in (305 mm)

Minimum Order: 1 Package (one hinge per pack.)
