Product Details:

Fabricated and Ready to Weld
Eliminates the Need for Drilling and Tappping on Job Site

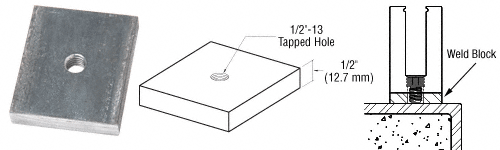

These CRL Weld Blocks are manufactured for use with the CRL Base Shoes. When welded to a structurally sound steel beam or angle, they provide an attachment point using our pre-drilled Base Shoes and our SHCS12X34 Stainless Steel Socket Head Cap Screws. A favorite technique is to attach the Weld Blocks to the Base Shoe, set it in the proper position, and then weld the Weld Blocks to the beam, angle, or embedment plate. Weld Blocks are made of hot rolled steel. 10 per package.

Length:       2-1/2 in (63.5 mm)
Width:        2-3/4 in (69.9 mm)
Thickness: 1/2 in (12.7 mm)

10 per package.
