Product Details:

• Big 279 mm Diameter Vacuum Pads
•

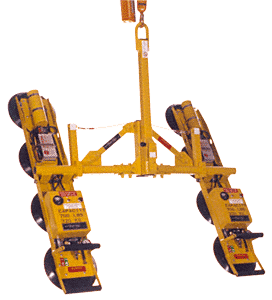

  When you have heavy glass to lift and need cord-free movement we have the equipment to help you get the job done. The CRL Powr-Grip P11104 Powr-Grip Single Channel Vacuum Lifting Frame features four 11 inch (280 millimeters) lipped rubber cups, mounted on a steel channel which, when attached to the glass, measures 12 x 51 inches (305 x 1,300 millimeters).

  Each P11104 carries its own vacuum pump and controls; applies in 6 sec. and releases in 12; weighs only 70 pounds (32 kilograms) ready to work and carries a safe work load rating of 700 pounds (318 kilograms).

The P11104 can be fitted with concave cups for handling curved glass and the individual cups, Cat. No. G3370, are easily replaced if damaged at the job site. Restrictions at the cups minimize the chance of load loss if the glass breaks across one cup. Stocked in 12-Volt DC power, the units are also available in optional 115-Volt AC power. The P11104 comes with a heavy-duty aluminum lift bar which gives the unit 180º of edgewise rotation with positive locking in three positions; 90º of tilt, vertical to flat; and automatic latching in the upright position.

• Lifting Capacity: 635 kg (1400 lb)
• Volt : 240V
• Pad Spread Size: 1370 x 1295 mm (54 x 51 in)
