Product Details:
- Allows 3/16" (4.8 mm) Diameter Cable to Be Adjusted
Between Spans
- Mounts to Aluminum, Wood, or Stainless
Steel
- Type 316 Stainless Steel
|

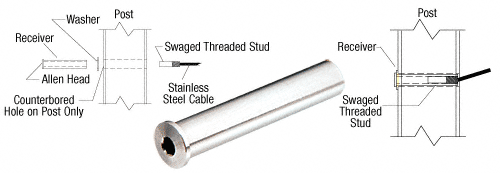

The CRL Tension Receiver is a
tensioning device hidden inside the end post, with only the head of
the Receiver exposed on the outside of the post. It allows the
Stainless Steel Cable to be adjusted between spans. The inside is
female-threaded to accept the male threaded Cat. No. SWGST2 Swaging
Stud Fitting that is attached to the cable. Requires 3/16 inch hex
wrench to fasten. A 7/16 inch (11 millimeter) diameter clear hole
is required when drilling post for fitting.
