Product Details:

For 1/4" (6mm) Glass
Installs Into Wood Cabinet
Requires One Hole for Installation
Available in Polished Chrome and Brushed Nickel
No Glass Fabrication Required

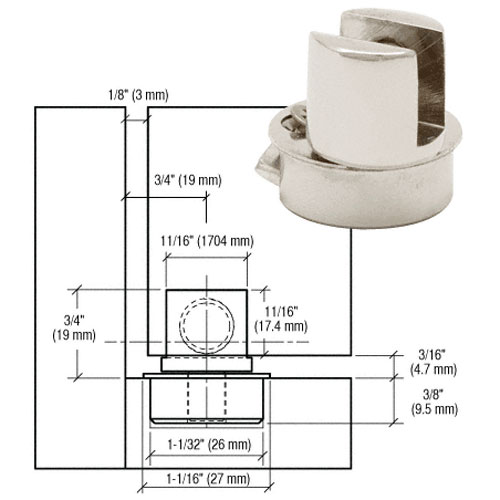

CRL's Berretta Barrel Glass Door Hinges are for 1/4" (6mm) thick glass. Distinctively designed, the Hinges close to a self-centering position. Each pack contains two Hinges, one upper and one lower. The Hinges require a 1-1/32" (26mm) hole drilled into the wood for installation. A phillips head screw in the Hinge base locks and holds the Hinge in position. The maximum recommended door size is 18" (457mm) wide x 47" (1200mm) high. Maximum door weight should not exceed 17-1/2 lbs (8 kgs).

Color: Brushed Nickel
