Product Details:

Securely and Efficiently Holds Panels to Cables

Available in Several Finishes

Easy to Assemble and Install

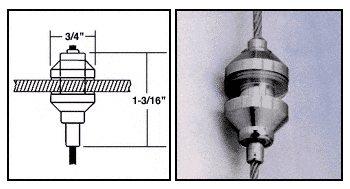

The CRL Brushed Nickel Plated Drilled Glass Shelf Brackets for the Cable Display System will securely and efficiently hold your 1/4 inch (6 millimeter) or 5/16 inch (8 millimeter) panels onto the stainless steel cables. A 1/2 inch (12 millimeter) drilled hole is required in your glass, acrylic or wood panels to enable the installation of the Drilled Shelf Brackets which unscrew to permit the shelves to be installed. When the cables have been inserted thru the lower half of the fitting, thru the panel, and thru the upper half of the fitting, the Bracket can be screwed together.

Once installed, the shelves can easily be re-positioned by depressing the lower part of the Bracket and sliding the shelf to the desired position.

Color:       Brushed Nickel

Diameter: 3/4 in (19mm)

Length:    1-3/16 in (30mm)

Important Note:

WEIGHT LIMITATIONS: When properly installed, each column (4 cables) can bear a total weight of up to 80 lbs. (36kg.). Each shelf can bear a total weight of 20 lbs. (9kg.), when used with CB74, CB76 and CB78 Ceiling Mount Fittings.

If CB112 and CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear a total weight of 40 lbs. (18kg.).
