Product Details:

• Projects the Surface Outward for Extra Clearance
• Allows Precise Adjustment After UV Bonding for a Perfect Fit
• Finishes to Match Our Vertical Countertop Supports

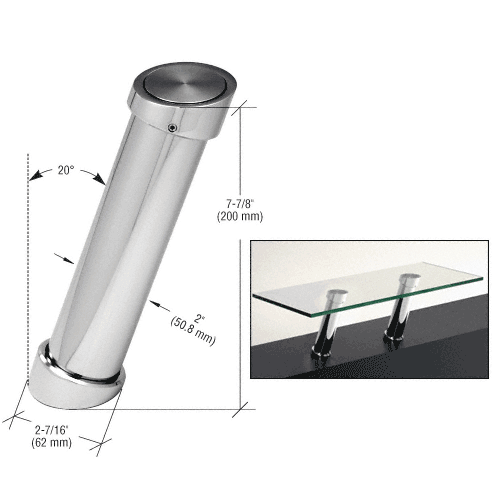

CRL Angled Countertop Supports are 20 degrees off vertical to assist positioning the upper countertop off the lower for additional space requirements in residential and commercial applications. Installed height matches our Vertical Countertop Supports. Use a combination of Vertical and Angled Countertop Supports to create unique installation designs for your customer's shelf riser, sneeze guard, or glass breakfast bar applications. You can use our UV682 UV Bonding Adhesive for the flat insert, glass-to-metal portion of the installation. Everything required for the mechanical portion of the installation is provided with each Support, including the lower counter mounting bolts. NOTE: Maximum recommended span between Supports is 23-1/2 inches (600 millimeters). Maximum overhang from post center is 7-7/8 inches (200 millimeters). Maximum load capacity is 33 pounds (15 kilograms) per Support.
