Product Details:

For 1/4" to 5/16"(6 to 8 mm) Thick Glass
Solid Brass Construction
Requires One Hole and One Cut-Out

The CRL Surface Mount Cabinet Pivot Hinge can be used with 1/4 or 5/16 inch (6 or 8 millimeter) glass. The maximum recommended door width is 24 inches (610 millimeters). The recommended maximum weight of the door should not exceed 50 pounds (22.7 kilograms). Minimum clearance required is 1/4 inch (6.3 millimeters) both top and bottom.
Required glass fabrication for hinge installation is one hole and one cut out.

Color: Chrome

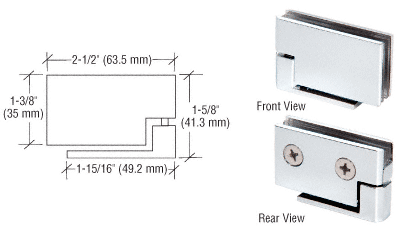

Width:  2-1/2 in (63.5 mm)
Height: 1-3/8 in (35 mm)

Minimum Order: 1 Package (One set top and bottom per package.)
