Product Details:

For 3/8" to 1/2" (10 to 12 mm) Glass
Solid Brass
Available in Several Beautiful Finishes

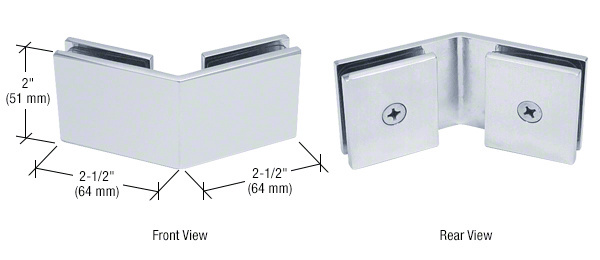

CRL Square Style 135 Degree Glass-to-Glass Clamps have sharp corners, and are designed for securing two panels at a 135 degree angle. The glass can be mitered or flat edged. Clamp is designed to clamp 3/8 to 1/2 inch (10 to 12 millimeter) glass panels which meet at a 135° angle.
Drawings and templates are available.

Color:        Polished Chrome
Leg Width: 2-1/2 in (63.5 mm)
Height :     2 in (50.8 mm)

Minimum Order: 1 Each

Specifications
Material: Forged Solid Brass
Glass Thickness Range: 3/8 to 1/2 Inch (10 to 12 millimeter)
Fabrication Required: 3/4 Inch (19 millimeter) Holes for Glass-to-Glass Clamps, Notch for Wall Mount Clamps
Includes: Mounting Screws (for wall clamps) and Gaskets
