Category: B7S Heavy Duty Base Shoes
CRL Duranodic Bronze Custom Square Heavy-Duty Base Shoe for 3/4" Glass
SKU: B7SDUC
UPC:
Product Details:
- Typically Used as the Base Channel for Glass Railing
Systems or Windscreens
- We Will Custom Drill to Your
Specifications
- Custom Cutting and Mitering Service
- Test
Reports Available
|

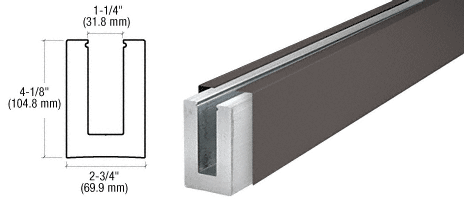

The CRL B7S Series Heavy-Duty Square
Base Shoe is used as the base channel for glass railing systems. It
can be clad in several choices of architectural finishes. The most
critical component in a railing system is the proper attachment of
the Base Shoe to the substrate. CRL has engineered and tested a
variety of attachment methods, and has developed an acceptable
combination of drilling patterns and fasteners. A printed brochure
with Instructions, Installation Hints, Cleaning, and Refinishing
techniques is available.
NOTE: 120 inch (3.05 meter) and 240 inch
(6.10 meter) Extrusion Only without holes) cannot be used for the
GlassWedge® Dry Glaze System unless the Base Shoe is
fabricated to the above tested and approved hole and counter bore
pattern. The GlassWedge® Dry Glaze System requires that the
attachment holes be counter bored so that no part of the fastener
protrudes above the base of the channel opening.
SHIPPING NOTE: Due to the difficulty in
packaging and handling 240 inches (6.10 meters) stock lengths, it
is suggested that you Will Call these at any of our distribution
centers. If requiring shipment, all packaging and handling concerns
must be agreed to by CRL and the customer prior to shipping. All
shipping arrangements will be documented on your quotation for your
signed approval.
