Product Details:

Matches Factory Flush Look

Dark Solar Privacy Glass

Contoured to Match Side Walls and Doors



The newest thing in van windows is CRL's "All Glass Look" selection for current model Chevy/GMC, Ford and Dodge full size vans.

They are the perfect accent to aerodynamic van styling, with dark solar privacy glass that goes right to the edge for a flush look. Interior structural framing has a black powder-coat finish, concealed from outside view by the silk-screened black fade edge of the glass.

The entire unit is contoured to match the sidewall or door, making installation as simple as conventional fully framed windows.

Our T-Vent Bay Windows feature state-of-the-art operating hardware on opening panels. Models are available to fit the forward and rear driver and passenger side rear panels, plus sliding and hinged side or rear doors.



Outside Frame Dimensions:   17-11/16 in (449 mm) x 22-1/8 in (562 mm)

Cut Out Dimensions:             16-7/16 in (418 mm) x 20-7/8 in (530 mm)

Clamp Ring/Angles:               1/8 in (3 mm) - Rectangular 90°/90°



Additional Product Information:

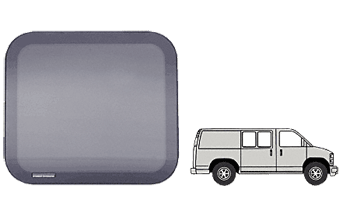

The FW131 40% Fixed Window can be used in the rear side hinged door as well as the forward side hinged door and the sliding door.



NOTE: Because of their custom fit design, specific model applications are not interchangeable between van manufacturers.

WARNING: These windows are not for retrofit applications.  FOR NEW INSTALLATION ONLY
