An Ideal System for 1/2" (12 mm) Shelving
High Quality in Appearance and Material
Horizontal and Vertical Applications
CRL Cable Kit for 3/8" to 1/2" (10 to 12
mm) glass is fabricated from
high quality 316 stainless steel. Used either indoors or
outdoors,
this system offers all the necessary components for any project
design.
Minimum Order: 1 Each

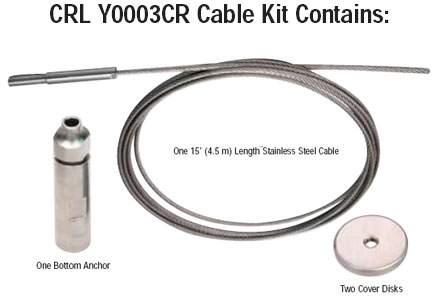

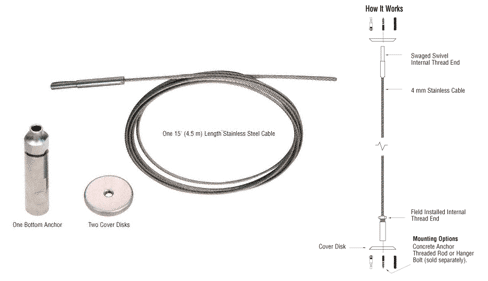

CRL Y0003CR Cable Kit Contains:
One 15 foot (4.5 meters) length of Stainless Steel Cable with Top
Swivel Fitting,
one Bottom Anchor and two Cover Disks.
Y031CR and Y032CR Shelf Connectors and attachment
hardware must be purchased separately.
Important Note:
Weight Capacity: Each Cable is rated at 1600 pounds (725.7
kilograms), and each Connector has
a maximum weight capacity of 35 pounds (15.9 kilograms). Due to the
diversified variety of applications,
weight limitations for the Cable Systems are dependent upon
ceiling, wall or substrate anchoring.
|
