Product Details:

Adjustable to Any Angle Up To 90° Without Removing Door
Available in Several Beautiful Finishes
Use Monolithic Tempered Glass

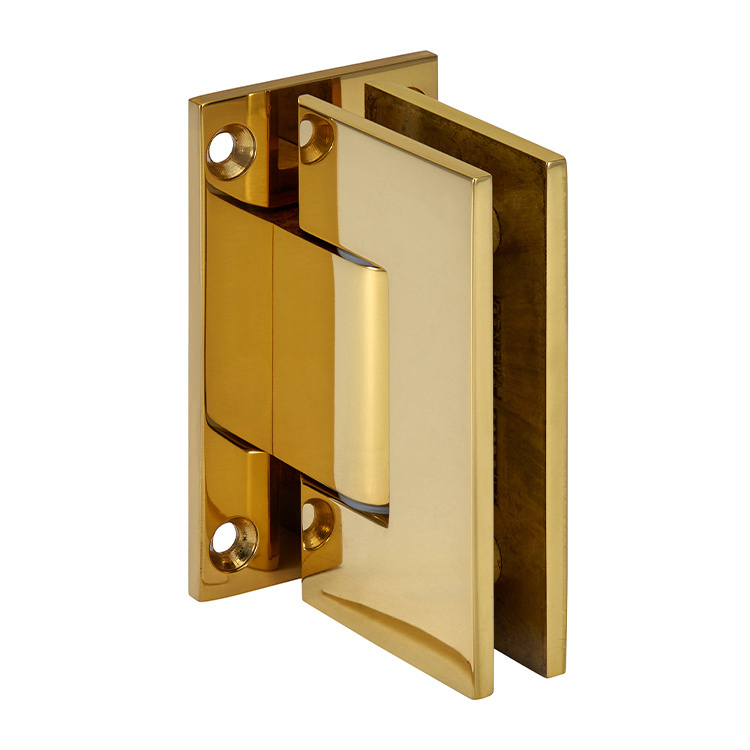

The CRL Geneva Series of professional hinges is able to accommodate 5/16 to 1/2 inch (8 to 12 millimeter) glass. A variety of 11 styles, including Wall Mount and Glass-to-Glass types, gives design flexibility. They are made of solid brass with all moving parts (pins and springs) in stainless steel. Geneva Hinges are self-centering, and contain a Reversible 5º Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off angle" installations.

Color: Brass

Minimum Order: 1 Each

Additional Product Information:
Standard Reversible Pivot Pin: Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90º. The opposite side is marked 85º. Offset Models come with the Pin pre-set to 85° (5° tighter closure into the shower interior). The Pin can be rotated (not flipped upside down) to activate the other side. Standard Geneva Hinges come with the 90° side activated.

Specifications:
Glass Thickness: 5/16 to 1/2 inch (8 to 12 millimeter) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required
Includes: One Hinge, Gaskets, Screws and Template
