Product Details:

For Top Sliding Tubes That Terminate Into a Wall

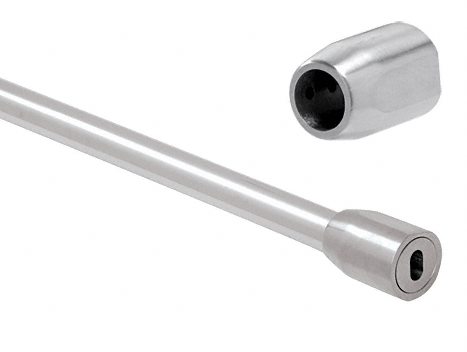

The CRL Laguna Series Top Sliding Tube Wall Mount End Clamp is a non-handed fitting. It is used in conditions where the Cat. No. LS104BS Top Sliding Tube terminates into a wall. The elongated hole and internal sleeve make final minor adjustments quick and easy.

Color: Brushed Stainless Steel

Minimum Order: 1 Each

System Limitations::
The following are recommended limitations for this system:
minimum panel width: 37-13/16" (960 mm)
maximum panel width: 53-9/16" (1360 mm)
maximum panel weight: 220 lbs (100 kg)
The panel height should never exceed 2.5 times the width of the panel
Maximum available length of the top track is 104" (2640 mm)
