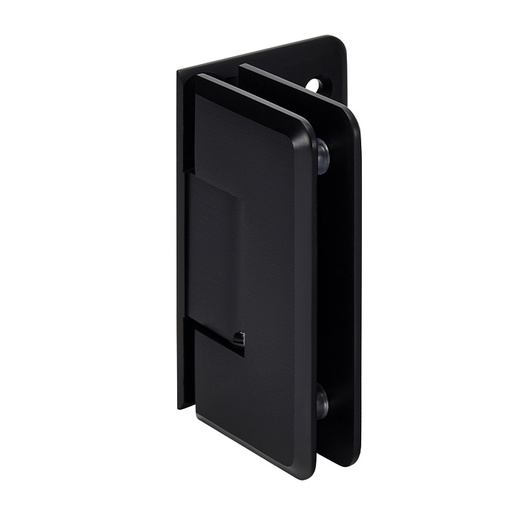

CRL Matte Black Cologne 044 Series Wall Mount Offset Back Plate Hinge
CRL Matte Black Cologne 044 Series Wall Mount Offset Back Plate Hinge | C0L044MBL
Category: CRL Cologne 044 and 544 5º Pre-Set Wall Mount Offset Back Plate Hinges
CRL Matte Black Cologne 044 Series Wall Mount Offset Back Plate Hinge
SKU: C0L044MBL
UPC:

$101.14 (20% off)

$84.28

Product Details:

  • Accommodates 3/8" to 1/2" (10 to 12 mm) Glass


  • The CRL Cologne Series of professional hinges is able to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) glass. A variety of styles, including Wall Mount and Glass-to-Glass types, gives design flexibility. They are made of solid brass with all moving parts (pins and springs) in stainless steel. Cologne Hinges are self-centering, and contain a Reversible 5º Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off angle" installations.

    Standard Reversible Pivot Pin: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90 degrees. The opposite side is marked 85 degrees. Offset Models come with the Pin pre-set to 85 degrees (5 degree tighter closure into the shower interior). The Pin can be rotated (not flipped upside down) to activate the other side. Standard Cologne Hinges come with the 90 degrees side activated.
  • Color: Matte Black
