Product Details:
- Designed for the "All Glass" Look
- For Use with 1/2" to 3/4" Tempered Glass
- Made of 316 Alloy Stainless Steel and Available in
Brushed Stainless and Polished Stainless Finishes
|

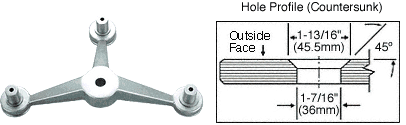

This CRL 3-Way Heavy-Duty Post Mounted Spider
Fitting is designed to handle the more rigorous
demands of large projects and will mount to structural post or
frame members and transfer the loads to the structure. Each Spider
is supplied with the countersunk swivel glass fastening fittings.
Alternate glass fasteners to accommodate heavier glass thicknesses
are available separately. Please Note: To determine whether
Regular-Duty or Heavy-Duty Spider Fittings are needed for you
application, please consult local building requirements and a
licensed structural engineer.
For additional assistance, contact us at .
SPECIFICATIONS:
For Use With: 1/2 to 3/4 inch (12 to 19
millimeter) Glass
Glass Fabrication Required: One 1-7/16 Inch (36.5
millimeter) Diameter Countersunk Hole Per Glass Fastening
Templates: Available on Request for Each
Fitting
Typical Applications:
- Malls
- Atriums
- Airports
- Museums
- All Glass Curtainwalls
- Color: Polished Stainless
