Product Details:

Curved Body
Works With 2-11/16" (68 mm) Pivot Setback Door Patch Fittings
Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass

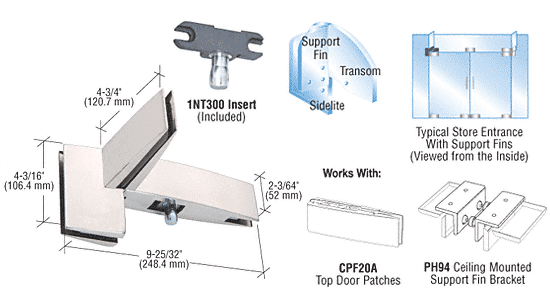

The CRL Curved Right Hand Sidelite Mounted Transom Patch with Support Fin Bracket is used to support a transom from a sidelite glass panel. It comes with a INT300 Insert for mounting a door with a CRL PH20A or PH21A Top Door Patch Fitting. For single doors, the insert can be removed on the non-hinged side allowing for a double swinging door. A INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a INT305 Transom Patch Keeper Insert can be installed for use with an AMR205 Lock when used for a top of the door installation. The support fin glass should be sized in accordance with approved design criteria (refer to GANA or Manufacturers Manual) and secured to the ceiling with a PH92 Ceiling Mounted Support Fin Bracket.

Color: Polished Stainless

Minimum Order: 1 Each

Glass Fabrication Required: Five 3/4 inch (19 millimeter) Diameter Holes and Two Corner Notches.
