Product Details:

Completely Concealed Compact Design  Intended for Bottom Rail Mounting
UL 10C, CUL, and CSFM Listed
5 Year Limited Warranty

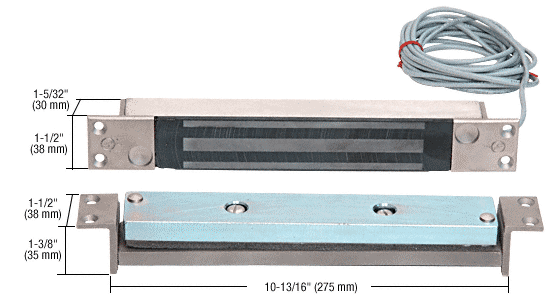

This Securitron® brand Electromagnetic Mortise Shear Aligning Magnalock is designed for use with single and double metal doors and frames, or glass doors with top rails and metal frames. These compact size shear locks are mortised into the frame, and the strike is concealed into the door frame or rail. This totally concealed locking mechanism is ideal for swing-through and sliding doors, and provides superior security and appearance.

Specifications
Holding Force: 1200 pounds (5338 newtons)
Input Voltage: 12/24 VDC (Automatic Selection)
Current Draw: 350 mA at 12 VDC / 175 mA at 24 VDC

Length: 10-7/8 in (276 mm)
Width: 1-1/2 in (38 mm)
Mag / Strike Height: 1-1/8 in (29 mm) / 1-3/8 in (35 mm)

Minimum Order: 1 Each
