Product Details:
- High Production Capability
- All Cuts Are Perfectly Square
- Made in the U.S.A.
|

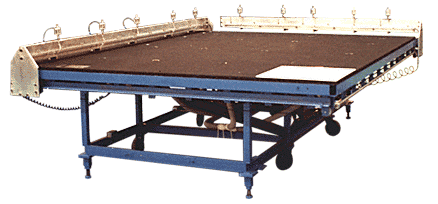

This CRL Semi-Automatic X-Y Double Bridge Cutting
Table is the fastest production cutting table in the
marketplace. Developed for high volume, the X-Y cutting of glass
pieces from stock as small as four by four inches (101 by 101
millimeters) to as large as 144 by 240 inches (366 to 610
centimeters). Minimum glass cut size is two inches (51 millimeters)
square. This table provides rapid scoring of glass lites into
either square or rectangular patterns. Spring loaded cutting heads
with oil option and carbon steel cutting wheels give the perfect
score for non-flair breaking. Cuts glass thickness from 1/8 to 3/4
inch (3 to 19 millimeter). Typical cutting time for large lites is
25 seconds with remote auto bridge.
Available options for this table includes:
- Maximum Glass Size: 108 x 144 in (2,743 x 3,658mm)
- Overall Size: 132 x 168 in (3,353 x 4,267mm)
- F.O.B : Red Oak, Texas
