Product Details:

•Three Configurations All from the Same Unit
•Full 360 Degree Rotation with Tilt From Any Position
•Four 10" (254 mm) Diameter Vacuum Cups
•Cord-Free Operation with On-Board Gel Cell Battery

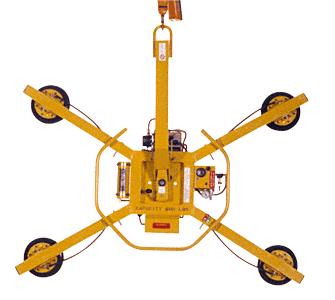

The CRL 600 Pound Capacity Powr-Grip Manual Rotator/Tilter Vacuum Lifting Frame is the most versatile vacuum lifting system ever offered. Its flexible frame configurations, and adjustable pad locations allow you to design the frame to suit your requirements. Full 360º rotation with tilt to flat can be made from any position, due to a "perfect" pivot balance the

Load Capacity: 600 lb (270 kg)
Cup Diameters: 10 in (254 mm)

Additional Product Information:
CRL MRT4HV11DC's 600 pound safe work load rating is maintained by an on-board gel cell battery powered vacuum system that supplies constant suction pressure to the vacuum pads. The electrical system is cord free, and includes a system analyzer and charger unit. The smooth 360º rotational pivot has locking at each quarter point. Vacuum pressure at 8 seconds to attach, 6 seconds to release.

Basic frame dimensions are 27 x 31-3/4 inches (685 x 806 millimeters). Plug-in pad arm extensions expand the frame to 47 x 66-1/2 inches (1194 x 1689 millimeters). Vacuum pad positions move easily for optimum coverage on most standard lites. Other support systems include a reserve vacuum tank and gauge, plus a red "no-lift" light. All this combines to make CRL Powr-Grip's newest and mid-size glass handler the most versatile and easy-to-use unit ever offered.
