Product Details:

• Load Capacity is 1200 Lbs (545 Kilograms)
•

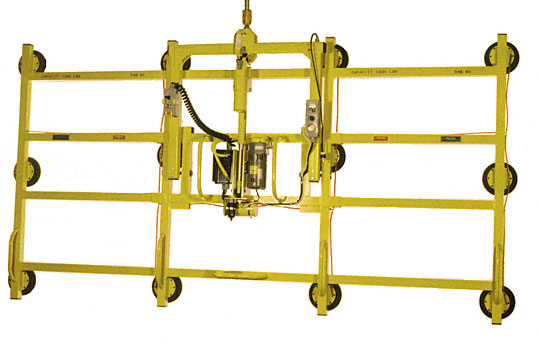

  With powered 90 Degree tilt and a frame that supplies support across the entire load surface, this CRL Powr-Grip® Vacuum Lifter is ideal for handling oversized production materials. The standard vacuum pad spread is 78 x 154 inches (1981 x 3912 millimeters). Twelve, 9 inch (229 mm) vacuum pads that have a maximum load capacity of 1200 pounds (545 kilograms). Works on standard operating power of 120 volts AC. Standard features include; Green lift light, Removable control pendant, Vacuum gauge, Vacuum reserve tank, Vacuum line filter, Spring-mounted vacuum pads, Twist-lock electrical plug, and a Blow-off for quick release. Available options include; Vacuum loss warning buzzer, High-duty tilt with speed control, 12-Volt/DC vacuum back-up system, Individual vacuum pad shutoffs, Movable vacuum pad mounts, Voltage adaptation, Alternative vacuum pad frame dimensions and configurations. Contact CRL Technical Sales at 800-421-6144 Ext. 7720.
