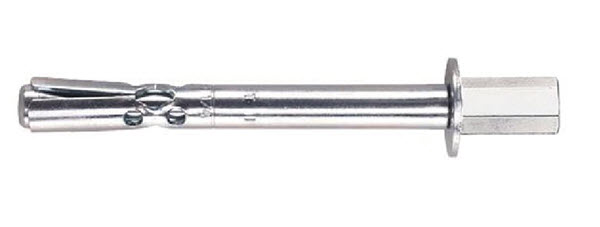

Product Details:

Anchor size is same as drill bit size for easy installation
High performance in block, masonry and concrete base materials

Applications: Hanging rod applications.

Drill bit diameter: 3/8 in
Anchor length: 1-7/8 in
Baseplate clearance hole: 7/16 in
Internal thread size: 5/16 in
Base materials: Concrete (uncracked), Masonry (solid)
Material, corrosion: Steel, zinc-plated
Head configuration: Internally threaded
Standard embedment depth: 1.25 in
Drilling depth: 1.75 in
Installation direction: All
Required tightening torque: 10.03 ft-lbf
Material composition: Steel, zinc-plated (min. 5 µm)

Box Qunatity: 50

Hilti Part Number: 336254
