Product Details:

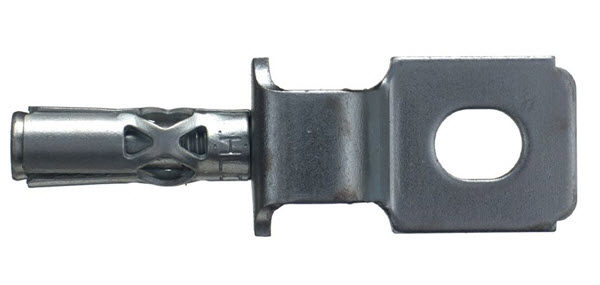

Pre-assembled anchor for easy and fast installation
Bulged middle section of sleeve with triangular diamond shaped openings help prevent the anchor from twisting in its hole or dropping out of an overhead hole

Applications: Attaching wire tie in a variety of base materials.

Drill bit diameter: 1/4 in
Anchor length: 1-3/8 in
Baseplate clearance hole: 3/8 in
Base materials: Concrete (uncracked), Masonry (grout-filled CMU), Masonry (solid)
Material, corrosion: Steel, zinc-plated
Head configuration: Tie wire
Standard embedment depth: 1 in
Installation direction: All
Environmental conditions: Indoor, dry conditions
Material composition: Steel, zinc-plated (min. 5 µm)

Box Qunatity: 50

Hilti Part Number: 336241
