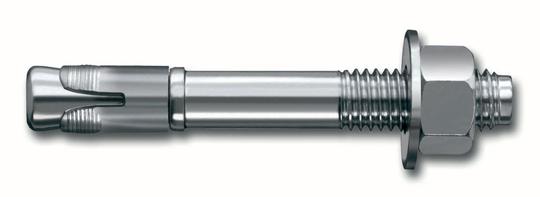

Product Details:

Approved by ICC-ES for Masonry and Concrete
Rounded End for Easy Installation
Dog Point Impact Section to Prevent Thread Damage During Installation
Best Approval Rating in Class

Hole Diameter: 5/8 in
Anchor Length: 4-3/4 in
Thread Length: 2-3/4 in

Allowable Loads (Greater Than/Equal To 4000 psi Concrete):
Embed Depth: 4
Tension (lb): 3385
Shear (lb): 3910

For Base Materials:
Lightweight Concrete, Uncracked Concrete, Lightweight Concrete over Metal Deck, Grout-filled Block

Anchor Material:
Carbon Steel, Electroplated Zinc (min 5 microns)

Box Quantity: 15

Hilti Part Number: 282530

Listings and Approvals:
ICC-ES (International Code Council) - ESR-1385 (AC01 Masonry), ERS-2302 (AC193 Concrete)
FM (Factory Mutual) Approved
UL Listed
COLA (City of Los Angeles) - RR 25577
Metro-Dade County - NOA No. 06-0810.13
Qualified Under an NQA-1 Nuclear Quality Program
