CRL 8300 Series Medium Duty 90 Degree Hold Open Low Profile Floor Mounted Closers
|
|
|
|
|
|
|
|
264 Pound (120 kg)
Capacity, 42" (1067 mm) Doors
Low Profile 1-9/16" (40mm) Depth Model with
Changeable Spindle Heights

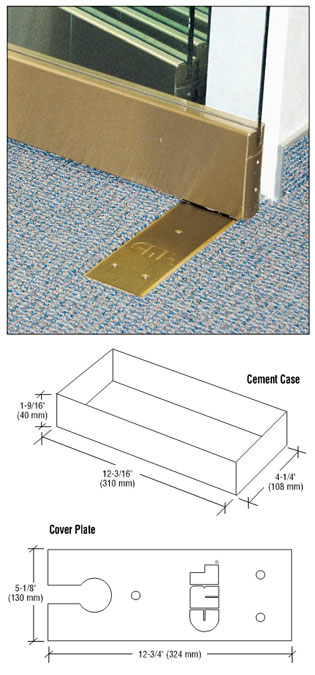

Includes Closer,
Cement Case and Cover Plate
Door Closers Cross Reference Chart
The CRL Low
Profile Floor Mounted Door Closers are preferred for many types
of installations because they only require a shallow 1-9/16 inch (40
millimeter) depth cut out in the floor.
This is especially
important on floors above the ground floor.
The shallow cut out
leaves enough remaining floor under the Closer to support the weight of
heavy doors.
The standard spindle
collar height supplied with the Closer is 1/8 inch (3 millimeter).
Spindles with other collar heights are available to accommodate
different threshold and finished floor heights.
The closer has dual
independent valves for closing operation, one valve for closing and one
valve for latching.
Note: An auxiliary flora or overhead door stop is recommended to
prevent possible damage to both the closer and entryway due to
over-extension of maximum allowable door swing.
Specifications:
Maximum Door Weight: 264 lbs. (120 kg)
Maximum Interior Door Width: 42 in (1067 mm)
Maximum Exterior Door Width: 38 in (965 mm) |
 |
|
|
|
|
|
|
|
|
